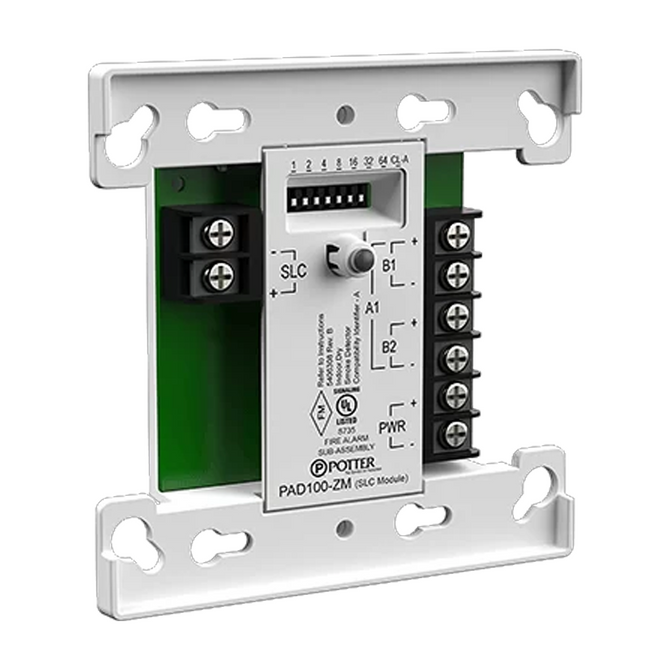

The PAD100-ZM POTTER Zone Module expands the monitoring capacity of PAD 100 fire alarm systems, enabling comprehensive coverage across multi-zone facilities. This intelligent module integrates directly with the control platform, providing addressable zone management without requiring additional control panels. Built with enterprise-grade architecture, the zone module supports sophisticated detection logic and customizable response protocols tailored to facility-specific requirements. The modular design facilitates scalable system expansion as facility needs evolve. Engineered for reliability in critical applications, the PAD100-ZM delivers the zone intelligence necessary for managing complex fire safety infrastructure while maintaining operational efficiency and regulatory compliance.

The PAD100-ZM module occupies a single address on an SLC loop while supervising either two (2) Class B circuits or one (1) Class A circuit. It requires a supervised 24VDC auxiliary power input, which must be supplied by either a Potter IPA series addressable panel or a Potter PSN series power supply. The IDC wiring configuration—Class B or Class A—can be selected using the onboard DIP switch. The PAD100-ZM features a red LED that displays the module’s status: under normal conditions, the LED blinks when the control panel polls the device, and when the module is activated, the LED flashes rapidly.

Specifications:

Features:

• Compatible with conventional 2-wire smoke detectors
• IDC can be wired One (1) Class A or Two (2) Class B
• Monitors presence of 24VDC Aux Power
• SLC Class A, Class X & Class B
• Mounts in a standard 4” or double gang box
• Wiring terminals accessible when mounted in box
• All wiring terminals accept 22 to 12 AWG
• UUKL Listed for Smoke Control
