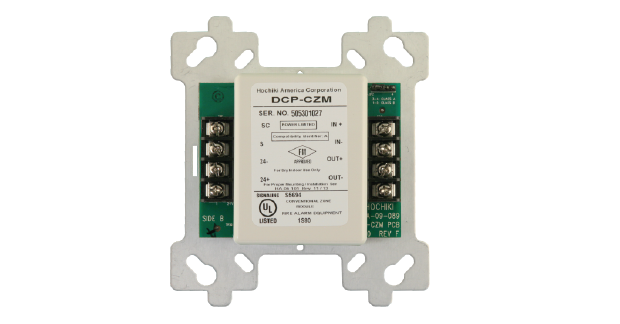

DCP-CZM HOCHIKI Interface Module
Contact us for price breaks on large quantities!
The DCP-CZM Conventional Zone Module integrates seamlessly into analog addressable fire alarm systems, enabling efficient monitoring across large installations. Support for up to 127 devices on a single SLC loop maximizes network capacity while minimizing infrastructure complexity. Each module features a unique device address stored on onboard EEPROM, ensuring reliable identification and configuration within your fire alarm network.
Designed for flexibility and scalability, the CZM allows you to expand system coverage without requiring additional wiring or major modifications. Ideal for commercial buildings, industrial facilities, and multi-zone properties requiring comprehensive fire detection and alarm coordination.
Specifications:
| Brand | HOCHIKI |
| Manufacture | Hochiki Corporation |
| Unit of Measurement | EA (Each) |
| TYPE | Interface Module |
| Condition | New |
| Weight | 3 oz |
| Part No. | DCP-CZM |
| Supply Voltage (S-SC) | 25.3 ~ 39 VDC |
| Auxiliary Supply Voltage | 18.8 ~ 27.2 VDC |
| Average Current Consumption | 670µA |
| 2-Wire Detector Loop Current | 1mA Max. |
| From Auxiliary Supply | 60mA Max. |
| Condition | New |
Features:
- Provides an address point for a zone of up to 25 conventional smoke detectors
- Blinks green when polled. Latched on red (controlled by panel) when activated
- Device address can be programmed with a handheld programmer. Device address- ranges from 1 to 127
- Compatible with Class B and Class A wiring
- UL 864 9th Edition Listed
Open DataSheet
