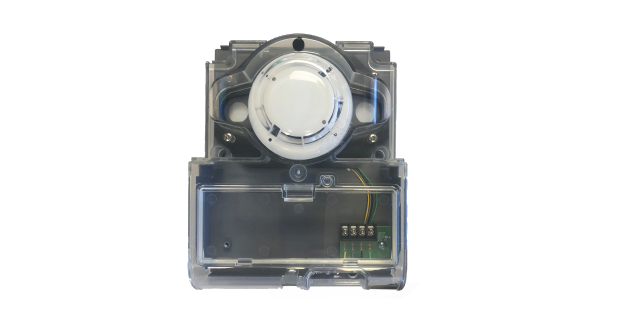

DH-101-A HOCHIKI Duct Detector
Contact us for price breaks on large quantities!
DH-100-A Analog Duct Smoke Detector provides early detection of smoke and products of combustion present in air moving through HVAC ducts in Commercial, Industrial, and Residential applications. The DH-100-A is designed to prevent the recirculation of smoke in areas by air handling systems, fans, and blowers. Complete systems may be shut down in the event of smoke detection.
DH-100-A is designed and built to meet all local requirements, as well as the NFPA regulations regarding duct smoke detectors. The DH-100-A is provided with output terminals for remote status indicators. Air sampling is accomplished by two tubes which protrude into the duct. An exhaust tube of on standard length (7.5”) is supplied in the installation kit with the smoke duct unit. Once the duct width has been determined the air intake sampling tubes must be ordered. Sampling tubes are supplied in three standard lengths 2.5ft., 5 ft. and 10ft. and cut to size to fit the duct.
Specifications:
| Brand | HOCHIKI |
| Manufacture | Hochiki Corporation |
| Unit of Measurement | EA (Each) |
| TYPE | Duct Detector |
| Condition | New |
| Weight | 0.4 lbs |
| Model | DH-101-A |
| Compatibility | Works with Hochiki analog addressable fire alarm control panels using the Digital Communication Protocol (DCP). |
| Air Velocity Range | 100 to 4,000 feet per minute (FPM). |
| Housing | Rugged grey steel back box with a clear plastic cover for easy inspection. |
| Condition | New |
Features:
- Detects and limits the spread of smoke throughout building HVAC ducts
- Compatible with building automation and fire alarm systems
- Installs quickly and easily
- No screen of filters to clean
- UL 268A Listed
- The design eliminates the need for cleaning screens or filters, reducing maintenance.
- Typically includes the ALN-DH Analog Addressable Photoelectric Smoke Sensor.
- Supports remote LED alarm indication.
