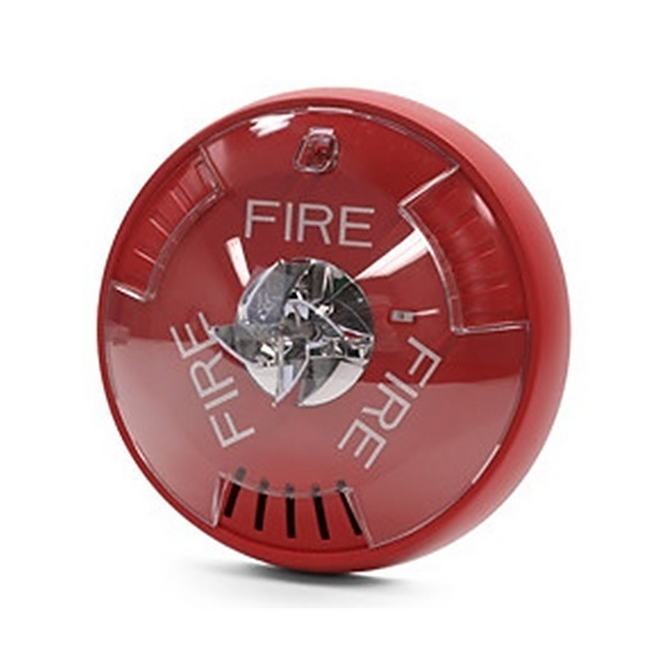

The PE-HSRC POTTER Horn Strobe combines audible and visual alarm signaling in a single ceiling-mounted unit designed for indoor fire safety applications. Featuring a red LED strobe with clear lens and selectable candela output (15/30/75/110/150/177 cd), it delivers customizable notification intensity for varied facility sizes. Operating at 24V, this device integrates seamlessly into existing fire alarm systems. The compact ceiling design provides unobstructed coverage while maintaining professional aesthetics in commercial environments.

The Potter PE Series utilizes cutting-edge LED technology and provides both low and high candela options for indoor wall and ceiling installations. Designed with a sleek, low-profile appearance, these units blend effortlessly into various interior spaces. Packed with features, each device includes six selectable candela levels and three horn tones, all within one unit. Installation is made easier thanks to pre-wire and pre-test functions using a hinged mounting plate. Wall-mounted versions are compatible with single-gang boxes and allow for tool-free adjustments. The PE Series operates on 24V systems, while the PE-HN model is also suitable for 12V applications.

Specifications:

Features:

• LED Technology for Energy Efficiency:
• Industry’s lowest current draw, ensuring energy efficiency.
• Requires fewer power supplies and smaller wire gauge, reducing wire runs.
• 6 field-selectable settings for both wall and ceiling models.
• Wall: 15 cd – 185 cd / Ceiling: 15 cd – 177 cd
• 3 horn patterns (Continuous, T3, T3/T4) for fire and CO signaling in one device.
• Strobe synchronization with Potter fire alarm control panels and power supplies. Ability to mix xenon and LED strobes in the same field of view.
