Eaton’s Wheelock Eluxa series of horns, horn strobes, and strobes incorporate cutting-edge, energy-efficient LED technology, offering a comprehensive selection of both low and high candela settings for indoor wall and ceiling installations. Housed in contemporary, streamlined enclosures, Eluxa devices feature an attractive, low-profile design that seamlessly integrates with a building’s interior aesthetics.

Industry-Leading Efficiency : Eaton’s advanced LED technology sets a new standard for low current draw in combined high and low candela devices, significantly reducing overall energy consumption. As the first notification appliances in the market to utilize LEDs as the light source, Eluxa’s innovative optical design delivers exceptional efficiency, resulting in material and system cost savings. This allows for more devices to be installed on a single notification circuit and reduces the need for additional power supplies, ultimately lowering both installation and operational expenses.

Versatile Candela Settings: All Eluxa strobe models offer six selectable candela options: wall units provide 15, 30, 75, 110, 135, and 185 cd, while ceiling models feature 15, 30, 75, 110, 150, and 177 cd settings.

Compact Design and Enhanced Features: With the smallest footprint in the industry, Eluxa horns, horn strobes, and strobes are designed to be visually unobtrusive, preserving the integrity of interior décor. The devices are equipped with a robust feature set, including six candela settings, three selectable horn tones (Continuous, T3, and T3/T4) in a single unit, pre-wire and pre-test capabilities via a hinged mounting plate for simplified installation, a single-gang wall design, and tool-free setting adjustments. The ELST strobe, ELHS horn strobe, and ELHN horn operate at 24V, with the ELHN also supporting 12V applications.

Compliance and Compatibility: Eluxa strobes comply with the 20-millisecond light pulse duration requirement specified in the 2016 edition of NFPA 72, allowing both xenon and LED devices to be used within the same visual field. The Eluxa series is UL listed under Standards 1971, 1638, and 464, as well as CAN/ULC-S525 and CAN/ULC-S526. All devices are RoHS compliant, containing no mercury or hazardous materials. Additionally, Eluxa products are UL/ULC listed for compatibility with all Fire Alarm Control Panels (FACP) and accessories approved for use with Exceder LED3 and Wheelock RSS strobe-based products, including the RSS, CH, E, EH, ET, ST, HS, MT, S8, SA, STH, and Z Series. Eluxa strobes can also be installed in the same notification zone and field of view as any Wheelock RSS and Exceder LED3 strobe models.

Specifications:

Features:

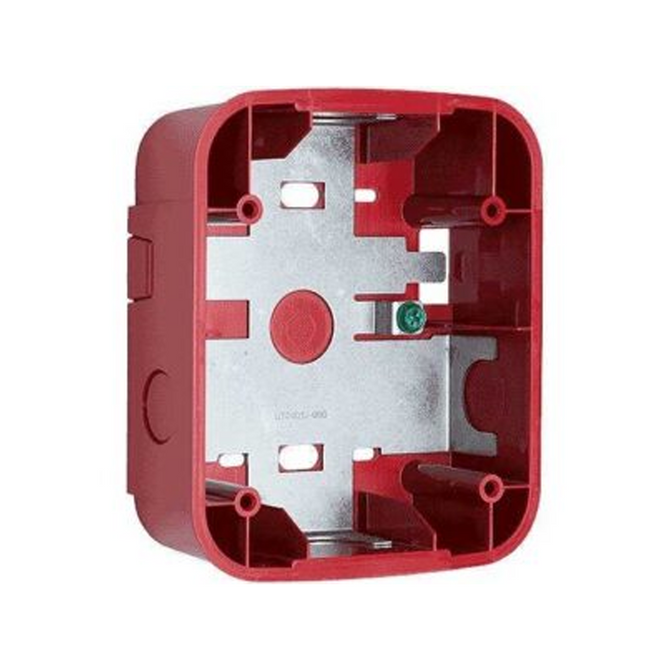

• Mounting Box offers a reliable, convenient mounting solution
• Surface application/usage for maximum productivity with convenience and optimal results
