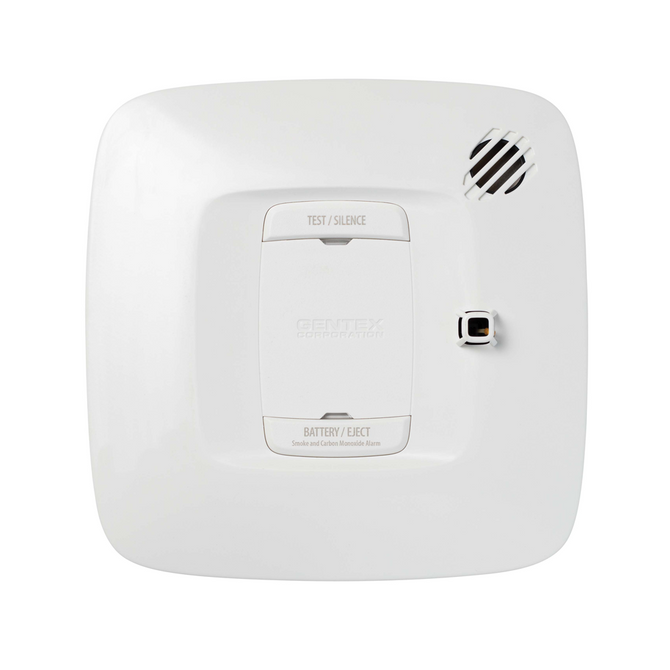

The SC Series multi-criteria combination smoke and carbon monoxide detectors are designed for use as evacuation devices in various living spaces, including but not limited to residences, apartments, hospitals, hotels, and motels. Offered in multiple models, the SC Series is specifically crafted to significantly reduce false alarms while providing exceptional performance in any setting where dependable fire safety is essential. This series operates on 120VAC and includes a 9V alkaline battery for backup in case of power outages. Additional features include Form A/Form C dry contacts for remote notification. The SC Series combination smoke and carbon monoxide detectors are certified to ANSI/UL 217 and ANSI/UL 2034 standards and come with a one-year warranty from the date of purchase.

Specifications:

Features:

• Listed to UL 217, 9th Edition and UL 2034
• Multi-Criteria smoke sensing including photoelectric light scattering sensing technology
• Electrochemical CO sensor
• 10-year end-of-life indicator
• Temporal 3 evacuation signal pattern for smoke and heat annunciation
• Temporal 4 signal pattern for CO annunciation
• 85 dBA evacuation horn piezo
• Horn frequency 3100Hz
• Programmable relay operation (SCR, SCRR)
• Relays operate on battery back-up (SCR, SCRR)
• SCR features one (1) set of Form A/Form C contacts that activate for smoke and/or CO events
• SCRR features two (2) sets of Form A/Form C contacts that activate for smoke and/or CO events
• 8-hour alarm memory
• Push button self-test
• Push button functional test
• Quick-disconnect wiring harness
• Interconnect with Gentex tandem capable smoke alarms
• Non-latching (self restoring) alarm
• Pulsing LED sensing chamber
• Fully insect screened
• Mounting hardware adapts to standard junction boxes
• Dust cover to prevent contamination during installation
• Low or missing battery indicator
