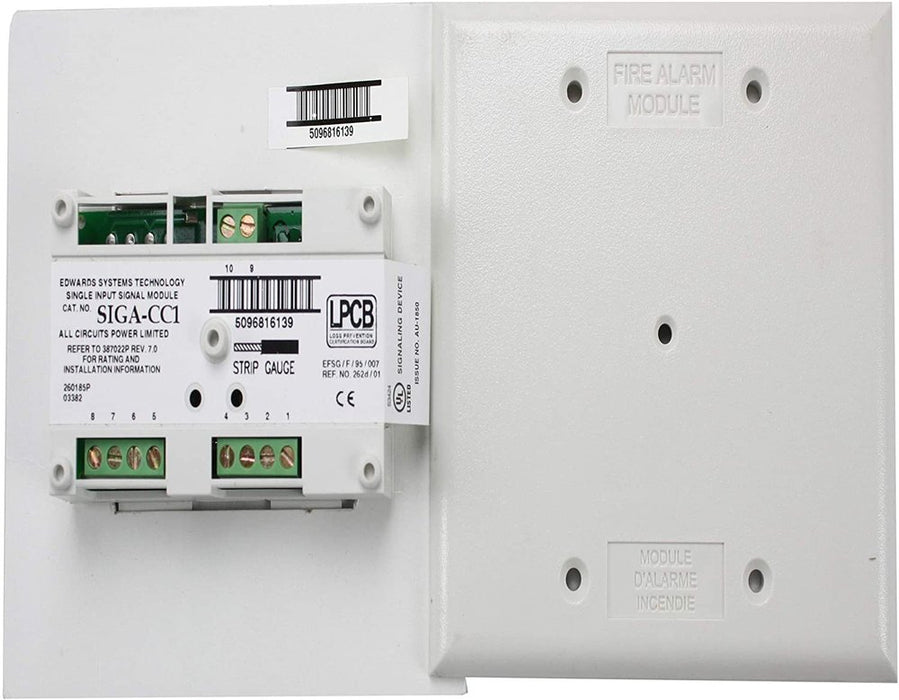

The SIGA-CC1- EDWARDS Single Input Signal Module provides reliable and precise monitoring of your fire alarm system. This module features advanced technology and a streamlined design for easy installation and integration. With its single input capability, this module is efficient and cost-effective for all your fire safety needs.

The SIGA-CC1 Single Input Signal Module is an addressable device designed to interface with various circuits, including: (1) Audible and visual notification appliance circuits (either synchronized or unsynchronized) (2) Speaker circuits (3) Two-way telephone communication circuits (operating in three-state or four-state modes)

Upon receiving a command from the loop controller, this module connects supervised Class B signal or telephone circuits to the corresponding riser input. The riser input can accommodate 24 VDC (for powering polarized audible and visual notification appliances), as well as 25 or 70 VRMS (for operating audio evacuation speakers) or firefighter telephones. It is important to note that the module does not facilitate signal synchronization. To achieve UL 864 compliance for horn and strobe signal synchronization, a Genesis Signal Master module must be installed.

The SIGA-CC1 module occupies a single address on the signaling line circuit (SLC), with addresses assigned electronically—there are no physical address switches. Diagnostic LEDs offer a visible indication of the module's status through the cover plate: 1. Normal operation: Green LED flashes 2. Alarm/active state: Red LED flashes

Specifications:
