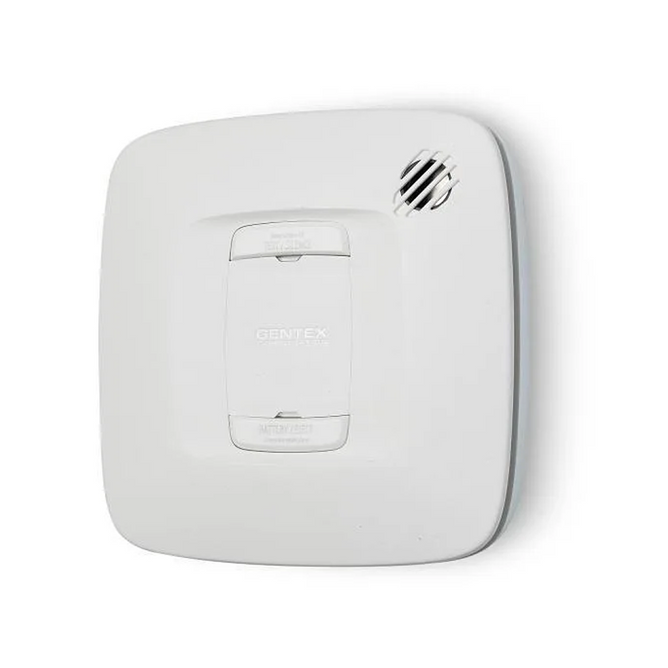

CR GENTEX Single or Multiple Station Electrochemical Carbon Monoxide Alarm
Contact us for price breaks on large quantities!
The GENTEX Single/Multiple Station Electrochemical Carbon Monoxide Alarm combines advanced CO detection with integrated relay contacts for seamless system integration. Electrochemical sensing technology ensures rapid, accurate response to dangerous carbon monoxide concentrations. Universal mounting accommodates wall or ceiling installation in any environment. The temporal 4 audible signal pattern delivers clear, code-compliant alerts that stand out from background noise. Form A/C relay contacts enable direct connection to building automation systems, fire alarm panels, and HVAC controls for coordinated emergency response. Perfect for standalone protection or multi-station networked applications in homes, offices, and commercial facilities.
Designed for evacuation in various residences such as private houses, apartment buildings, medical facilities, and lodging establishments, the C Series carbon monoxide alarms are versatile safety devices. With multiple models to choose from, this series is built to maximize reliability and significantly reduce false triggers in any environment requiring dependable CO monitoring. These units operate on 120VAC electrical power and include a 9V alkaline battery backup to ensure continuous protection during power outages. For remote signaling needs, the C Series offers optional Form A/Form C dry contacts (CR version). Listed under ANSI/UL 2034 standards, these alarms come with a one-year warranty starting from the day of purchase.
Specifications:
| Brand | GENTEX |
| Manufacture | Gentex Corporation |
| Unit of Measurement | EA (Each) |
| TYPE | Carbon Monoxide Alarm |
| Condition | New |
| Weight | 1.34 lbs |
| Dimensions | 5.5 × 5.5 × 1.75 in |
| Series | C Series Carbon Monoxide Alarms |
Features:
- Listed to UL 2034
- Electrochemical CO sensor
- 10-year end-of-life indicator
- Temporal 4 signal pattern for CO annunciation
- 85 dBA evacuation horn piezo
- Horn frequency 3100Hz
- Programmable relay operation (CR)
- Relays operate on battery back-up (CR)
- 8-hour alarm memory
- Push button self-test
- Push button functional test
- Quick-disconnect wiring harness
- Interconnect with Gentex tandem capable smoke alarms
- Non-latching (self restoring) alarm
- Pulsing LED sensing chamber
- Fully insect screened
- Mounting hardware adapts to standard junction boxes
- Dust cover to prevent contamination during installation
- Low or missing battery indicator
Open DataSheet
