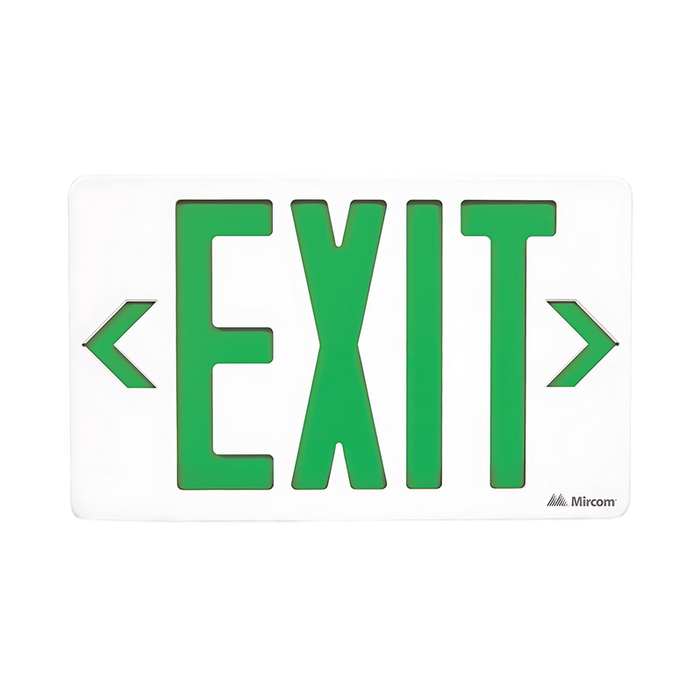

EL-7007GX-180 MIRCOM Green LED Emergency Exit Sign
Contact us for price breaks on large quantities!
Mircom EL-7007GX-180 LED Emergency Exit Sign provides highly visible emergency egress guidance with up to 180 minutes of battery-backed illumination. Its green LED exit display and two-sided configuration support clear directional identification during normal and emergency conditions.
Ideal for commercial, institutional and public buildings requiring reliable emergency exit signage. The energy-efficient LED design, long-duration backup and flexible wall, side or ceiling mounting support dependable life-safety installations.
Specifications:
| Brand | MIRCOM |
| Manufacture | Mircom Group of Companies |
| Unit of Measurement | EA (Each) |
| TYPE | Green LED Emergency Exit Sign |
| Condition | New |
| Weight | 2 lbs |
| Part Number | EL-7007GX-180 |
Features:
- • Injection-molded thermoplastic ABS housing
- • UL-94V-0 flame rating, fire-retardant
- • Wall, side and ceiling mountable
- • Input Voltage: 120/220-277VAC, 50/60Hz
- • Super bright LED plug-in strip with color connector for GREEN or RED backlit lighting. Switch is pre-set on GREEN. See manual for connecting details.
- • Nickel Cadmium Battery, 1.2V 600mAh
- • Test switch and charge indicator light
- • Overcharge & Over-discharge protection
- • Backup time: 180 minutes
- • Conversion time: < 0.2 second
- • IP Class: IP20 • Operating Temperature: 5 ºC ~ 35 ºC / 41 ºF ~ 95 ºF
- • Removable Chevrons
- • EMC/FCC approved
- • Comes with 2 faceplates with green plastic inserts and 1 backplate
- • Red plastic inserts available on request (sold separately)
Open DataSheet
