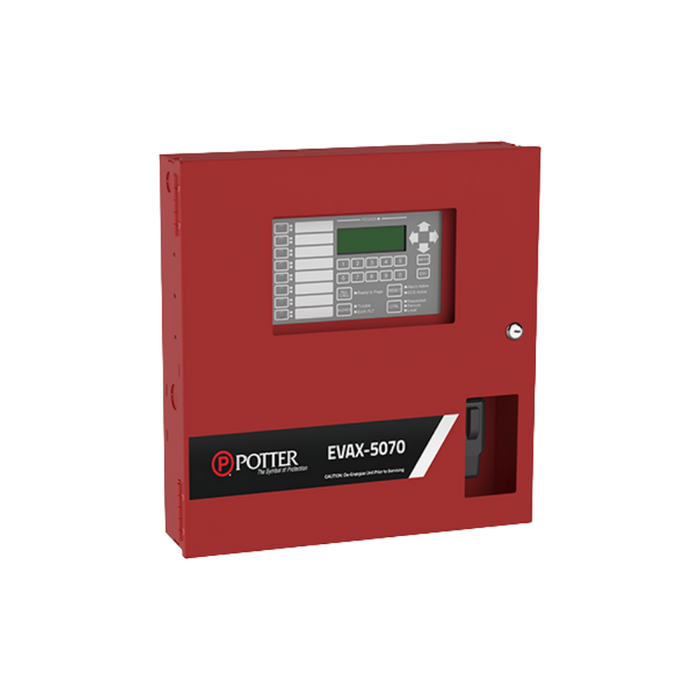

The Potter EVAX-5070 is a conventional voice evacuation panel featuring a 50-watt, single-channel amplifier and an included microphone. It supports selectable 120/240 VAC input, 25 V or 70 V speaker outputs, and multiple speaker circuits for emergency voice messaging.

The panel provides message activation inputs, programmable controls, stored messages and text-to-speech capabilities for fire and emergency communications.

Specifications:

Features:

• 50W, Single Channel Amplifier
• Microphone Included
• 4 Class B or 4 Class A speaker outputs
• Selectable for 25V or 70V
• 4 inputs for message activation
• Trouble, AC, and ECS relay outputs
• 1VRMS auxiliary input to receive audio from external audio sources
• P-Link communication bus (Class A or Class B) to connect accessories for system expansion
• V-Link audio bus (Class A or Class B)
• Connect up to ten (10) RM-1000ECS/RM-1000ECSTL remote microphones
• Connect one (1) PSN-1000
• 4x20 User Interface (80 Characters)
• 8 Programmable Soft Keys
• Up to 60 minutes of message storage
• Text-to-speech to translate custom text through a variety of natural and fluent sounding voices
• Internal message library of predefined messages and tones
• UL 864 / UL 2572 / UL 464
