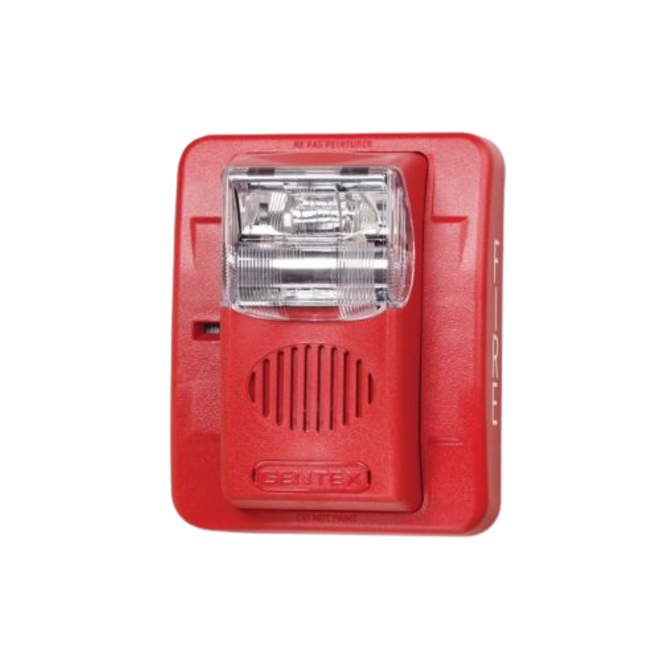

The GEC24-177WR GENTEX horn strobe features a robust 177-candela strobe and a built-in audible alarm, all housed in a compact, wall-mounted unit. Its bright red faceplate enhances visibility and allows for rapid recognition in emergency situations. With a fixed candela output, installation is straightforward and free from complicated adjustments. Engineered for dependable operation in both commercial and institutional environments, this device ensures reliable performance throughout various facility configurations. Its weather-resistant design makes it suitable for both indoor and outdoor use. Fully compatible with standard fire alarm systems, it offers essential dual-alert functionality to ensure comprehensive occupant notification.

The Commander2 Series features a compact design and is available as a strobe, horn, or horn/strobe combination. It delivers reliable audible and visual alerts while maintaining exceptionally low current consumption.

The GE Series comes in fixed candela choices of 15/75 and 177. The Commander2 Series horn provides a continuous or synchronizable temporal 3 pattern in both 2400Hz electronic and mechanical tones, along with chime and whoop options. All sound settings can be conveniently adjusted by professionals on-site using simple switches.

The Commander2 Series comes equipped with a standard 4-inch mounting plate that includes the widely used Super-Slide® feature, enabling installers to conveniently test for supervision. Additionally, the product is designed with a locking mechanism that fastens it to the bracket, ensuring no visible screws. Another key feature of the Commander2 Series is the patented Checkmate® Instant Voltage Verification, which lets installers quickly verify voltage drop and compare it to the specifications on the blueprint.

The GE Series appliances are certified to ANSI/UL 464, ANSI/UL 1971, ANSI/UL 1638, CAN/ULC S525 (24 VDC only), and/or CAN/ULC S526 (24 VDC only) standards for use in fire protection systems. They come with a three-year warranty from the date of purchase.

Specifications:

Features:

• Nominal voltage 24 VDC for horn, strobe and horn/strobe
• Nominal voltage 12 VDC for horn
• Fixed candela models of 15/75 and 177
• Unit Dimensions: 5” (12.7 cm) high x 4.5” (11.43 cm) wide x 2.5” (6.35 cm) deep
• Super-Slide® Bracket, Ease of Supervision Testing
• Checkmate® Instant Voltage Verification
• Prewire entire system, install mounting bracket, then install signals
• Documented lower installation and operating costs
• Input terminals 12 to 18 AWG
• Switch selection for high or low dBA
• Switch for 2400 Hz, mechanical, chime and tones
• Switch for continuous or temporal 3 (not available on whoop tone)
• Synchronize strobe and/or horn with Gentex AVSM Control Module
• Silence audible while visual appliance will remain flashing
• Tamperproof re-entrant style grill and locking screw (optional use)
