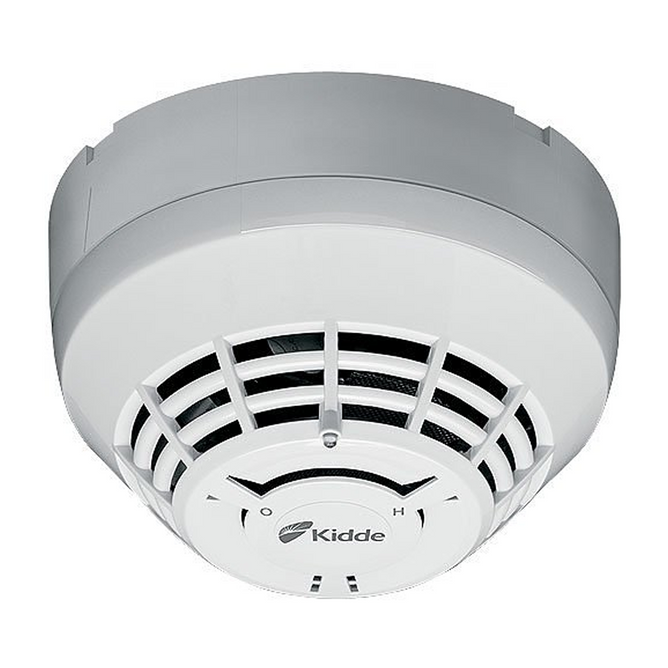

The KIR-OSHD KIDDE COMMERCIAL is an advanced detection and intelligence system engineered for comprehensive fire safety monitoring. This commercial-grade unit combines detection capabilities with intelligent processing, optional features, and redundancy protocols to ensure reliable smoke and heat sensing in critical environments. Built to meet stringent commercial standards, it delivers consistent performance across demanding applications. Trust this system to provide the dependable protection your facility requires.

The Kidde Intelligent Optica Series KIR-OSHD smoke detector features state-of-the-art optical (photoelectric) sensing technology within a user-friendly design that enhances operational efficiency, reduces installation time, lowers expenses, and improves both life safety and property protection. Ongoing self-diagnostic functions guarantee long-term reliability, while environmental compensation minimizes maintenance requirements.

The KIR-OSHD features an optical smoke detector alongside a rate-of-rise heat sensor equipped with a fixed temperature threshold. Working in tandem, these sensors effectively identify both slow-burning, smoldering fires and rapidly spreading, flaming fires.

Similar to other detectors in the Kidde Intelligent Optica Series, the KIR-OSHD is a smart device that collects analog data from several optical sensors and transforms this information into digital signals. By employing two optical wavelengths and various detection angles, the KIR-OSHD can distinguish between genuine smoke and particles that do not indicate a real fire. The particle information is processed through digital filters, which use a series of ratios to eliminate signal patterns commonly associated with false alarms, thereby minimizing nuisance triggers. To determine whether to initiate an alarm, the detector’s internal microprocessor evaluates and interprets all optical sensor inputs, comparing the results against its programmed parameters.

Specifications:

Features:

• Multi-criteria optical smoke sensing technology
• Integrates optical smoke with rate-of-rise heat sensing
• Wide 0.5 to 4.36 %/'. (1.6 to 13.6 %/m) smoke obscuration
• Integrated nuisance rejection reducing unwanted alarms from general cooking particulates
• Uses existing wiring
• Listed to UL 268 7th edition
• Sensor Markings Provide Easy Testing Identification
• Up To 250 detector and module Addresses Per Loop
• Two levels of environmental compensation
• Two levels of dirty detector warning
