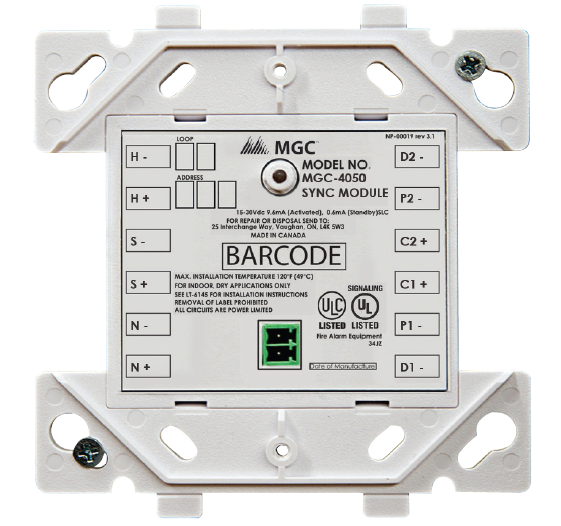

Mircom MGC-4050 NAC Synchronization Module provides reliable synchronization of visual and audible notification appliances on compatible fire alarm circuits. It supports Class A or Class B notification appliance circuit configurations and coordinates strobe flashing and notification patterns.

Ideal for installations requiring synchronized fire alarm notification across multiple appliances. Its flexible circuit configuration, two-stage operation and ability to link multiple modules support consistent emergency signaling throughout a facility.

Specifications:

Features:

• Synchronization: Coordinates strobe flashes and horn signals without requiring programming.
• Line Support: Connects to one (1) Class A or two (2) Class B NAC lines with up to 3 Amperes of load per line.
• Scalability: Features an isolated sync input/output that allows linking up to 20 modules together automatically.
• Fail-Safe Design: Automatically provides power to the NAC line by default through an internal relay during standby or power loss.
• Physical Setup: Mounts inside a standard 4-inch square or double-gang electrical back box. You can review further technical specifications in the Mircom MGC-4050 Datasheet.
