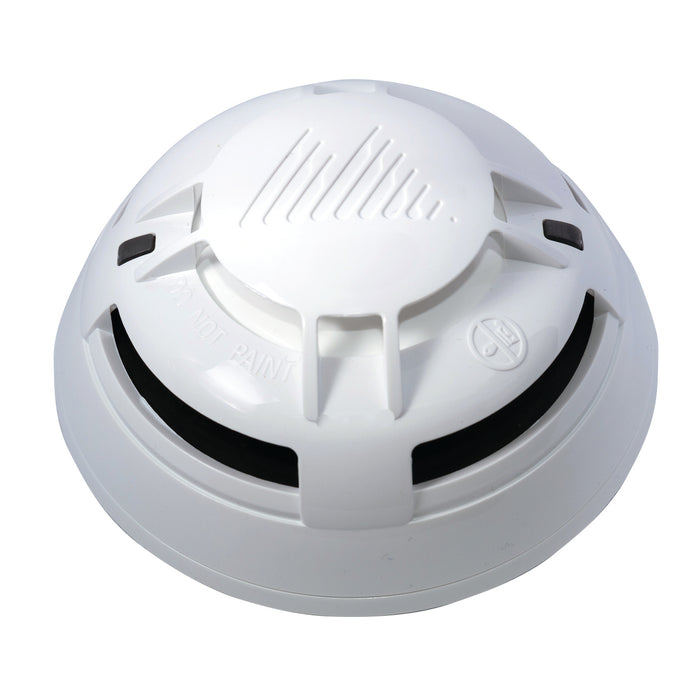

Mircom MIX-4011 Intelligent Addressable Photoelectric Smoke Detector provides reliable smoke detection with digital communication to compatible Mircom fire alarm systems. Its photoelectric sensing technology and 360-degree LED visibility provide clear alarm and status indication.

Ideal for commercial, institutional and residential fire alarm installations requiring addressable smoke detection. The detector supports programmable system operation and is designed for straightforward wall or ceiling installation with a compatible base.

Specifications:

Features:

• • Designed to meet UL 268th 7th edition and CAN/ULC S529 Rev 4 standards
• • Utilize advanced software algorithms to differentiate between genuine fire alarms and false alarms
• • Multiple sensitivity settings can be selected through the FACU
• • Dual LED indicators, offering 360° visibility with distinct colors for Alarms and Troubles
• • Link up to any combination of 240 MIX-4000 series devices on a single SLC loop
• • Compatible with the full series of MIX-4000 standard / specialty bases, input and control modules
• • Sensor is easily addressed through the hand-held device programmer (MIX-4090)
• • Listed for both wall and ceiling mounting using compatible bases
• • Magnet test option available to help with commissioning and maintenance
• • Isolated version (MIX-4011-ISO) equipped with a bidirectional short circuit isolator.
• • Standard 4" and 6" bases have a detachable tab for labelling device address
• • Remote Output can be controlled by the FACU
• • Low standby current
• • Supports wire sizes ranging from 12 to 22 AWG
