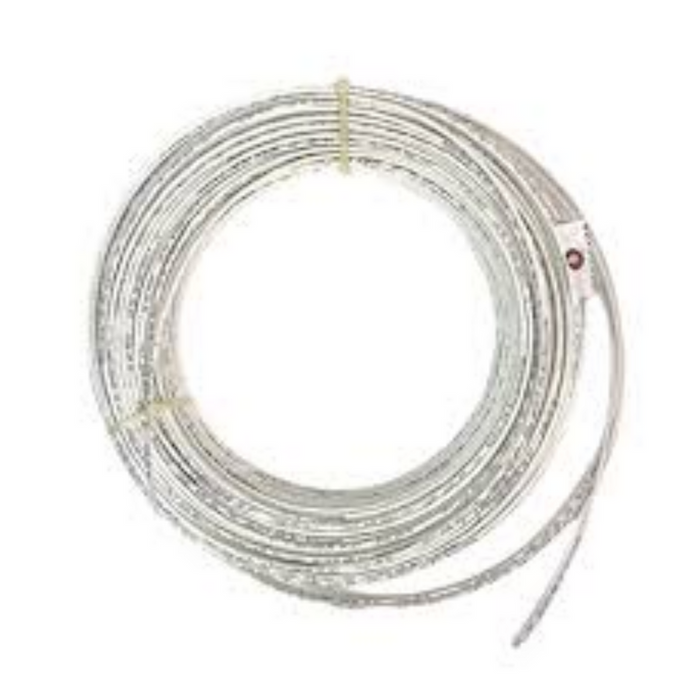

Introducing the NEW PHSC-190-XCR PROTECTOWIRE, featuring advanced Protectowire Type XCR technology with a temperature rating of 190°F / 88°C. Protect your property with this reliable and durable fire protection solution, conveniently packaged in a box of 500 feet. Trust in precision and expertise with Protectowire.

The Protectowire Linear Heat Detector is a specialized cable designed to sense heat along its entire length. This sensor cable consists of two steel conductors, each individually insulated with a heat-sensitive polymer. The insulated conductors are twisted together to create a spring-like pressure between them, then encased in a protective tape and finished with an outer jacket that is appropriate for the installation environment. As a fixed temperature digital sensor, Protectowire can trigger an alarm once it reaches its designated activation temperature. When this temperature is attained, the heat-sensitive polymer insulation gives way to the pressure, allowing the inner conductors to touch and generate an alarm signal. This process occurs at the first point of heat along the detector's length, eliminating the need for a specific length to be heated to activate the alarm or for system calibration to adjust for variations in ambient temperature. The Protectowire Linear Heat Detector offers the benefits of comprehensive line coverage combined with point-specific sensitivity.

Specifications:

Features:

• Cable trays
• Conveyors
• Power distribution apparatus: switchgear, transformers, motor control centers
• Dust collectors/baghouses
• Cooling towers
• Warehouses/rack storage
• Mines
• Pipelines
• Bridges, piers, marine vessels
• Refrigerated storage
• Tank farms
• Aircraft hangars
