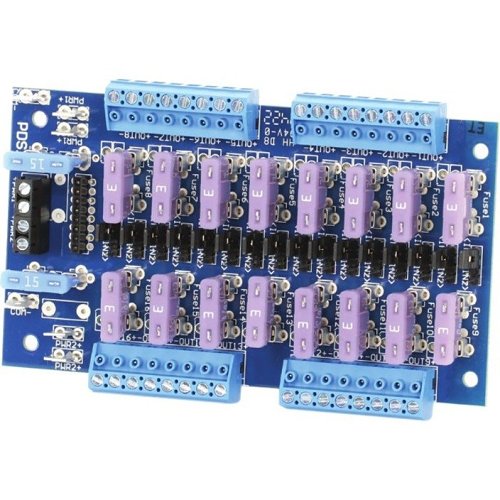

Altronix PDS16CB Power Distribution Module provides organized low-voltage power distribution through 16 individually protected outputs. Its dual-input design allows connected loads to be assigned to either of two power sources, providing flexible power management for security and access control equipment.

Ideal for installations requiring multiple protected power outputs in a compact format. Individual PTC protection, LED voltage indication and selectable input distribution simplify system wiring and service

Specifications:

Features:

• Voltage Range: 5V DC to 24V DC, up to 10A each or 16V AC to 28V AC, 60Hz, up to 10A each, 16A total input
• 9A Main PTC Rating
• Any of the sixteen (16) fuse/PTC protected power outputs are selectable to follow power Input 1 or Input 2.
• Multiple units may be daisy-chained to accommodate larger systems
