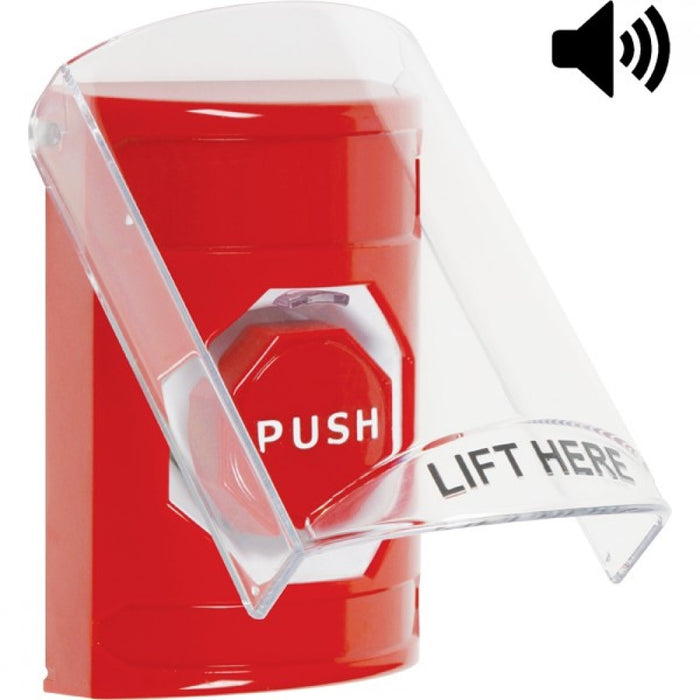

SS20A2NT-EN STI Security Push Button Switch
by STI
Original price
$97.27
-
Original price
$97.27
Original price
$97.27
$97.27
-
$97.27
Current price
$97.27
Availability:
in stock
Contact us for price breaks on large quantities!
Specifications:
| Brand | STI |
| Manufacture | Safety Technology International |
| Unit of Measurement | EA (Each) |
| TYPE | Security Push Button Switch |
| Condition | New |
| Weight | 1 lbs |
| Part No. | SS20A2NT-EN |
| Brand | STI |
| Color | Red |
| Switch Configuration | Key to Reset |
| Condition | New |
Features:
- Interchangeable or replaceable N.O. or N.C., SPST gold-plated contact blocks rated for 6 amps @ 600 VAC or 1 amp @ 250 VDC.
- Standard switch includes one N.O. and one N.C. contact. Holds up to three sets of isolated contacts.
- Two (2) Form "C" contacts, DPDT, rated 10 amps @ 125/250 VAC, 1/2 HP, 6 amps @ 30 VDC.
- Switch rating 10 amps @ 240 VAC resistive and has a timer range: 2 - 60 seconds (± 15%).
- Indoor use only. Not recommended for outdoor/water applications, temperature range of button 15º to 120ºF (-9º to +49ºC).
- Timer life of over 1,000,000 operations.
- Pneumatic adjustable timer opens or closes a circuit and has a timed delay before reset. No electricity to operate.
- Ideal for security applications.
- 1 Form Z, 1 N.O. and 1 N.C. contact.
Open DataSheet
