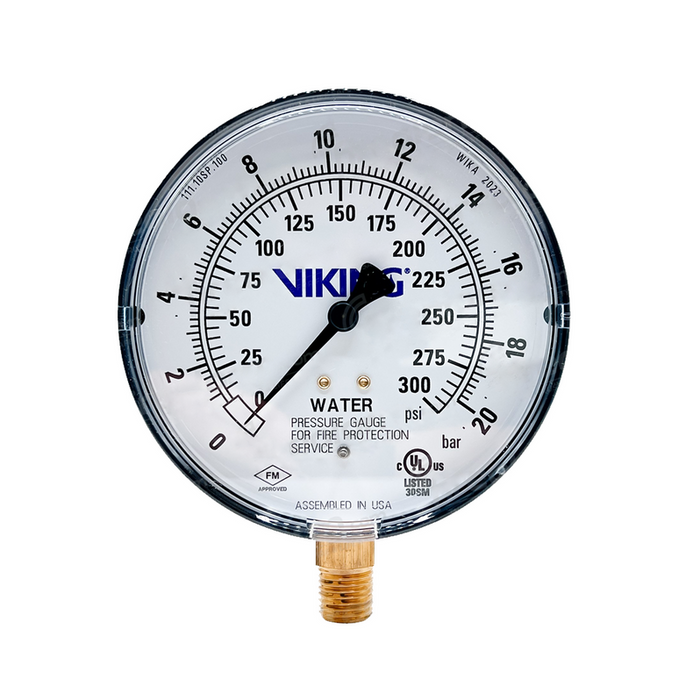

Viking VWATERSF is a water pressure gauge designed to provide a clear local reading of pressure in fire sprinkler and fire-protection piping systems. Its 0–300 psi (20.7 bar) range helps technicians verify system pressure during inspection, maintenance and operational checks.

The gauge uses a 1/4-inch NPT connection and a plastic case with a clear viewing window, with a bronze Bourdon tube and brass socket. It is intended for use on suitable sprinkler risers, alarm-valve trim and other fire-protection pressure-monitoring points. Install in accordance with applicable codes and the system manufacturer's instructions.

Specifications:

Features:

• • Pressure Range: Maximum working and water pressure rating of 300 PSI (20.7 bar)
• • Connection Type: 1/4” NPT threaded connection for standard system piping
• • Socket: Brass (soft soldered)
• • Case: ABS (Acrylonitrile Butadiene Styrene) plastic
• • Window: Polycarbonate
• • Dial & Pointer: Black figures on a white background with a black aluminum pointer
• • Movement: Suspended spring with a polyester segment
• • Listings & Approvals: UL Listed (VEVX), ULC Listed (VEVXC), and FM Approved for fire protection service
• • Availability: Standard model available since 1977
